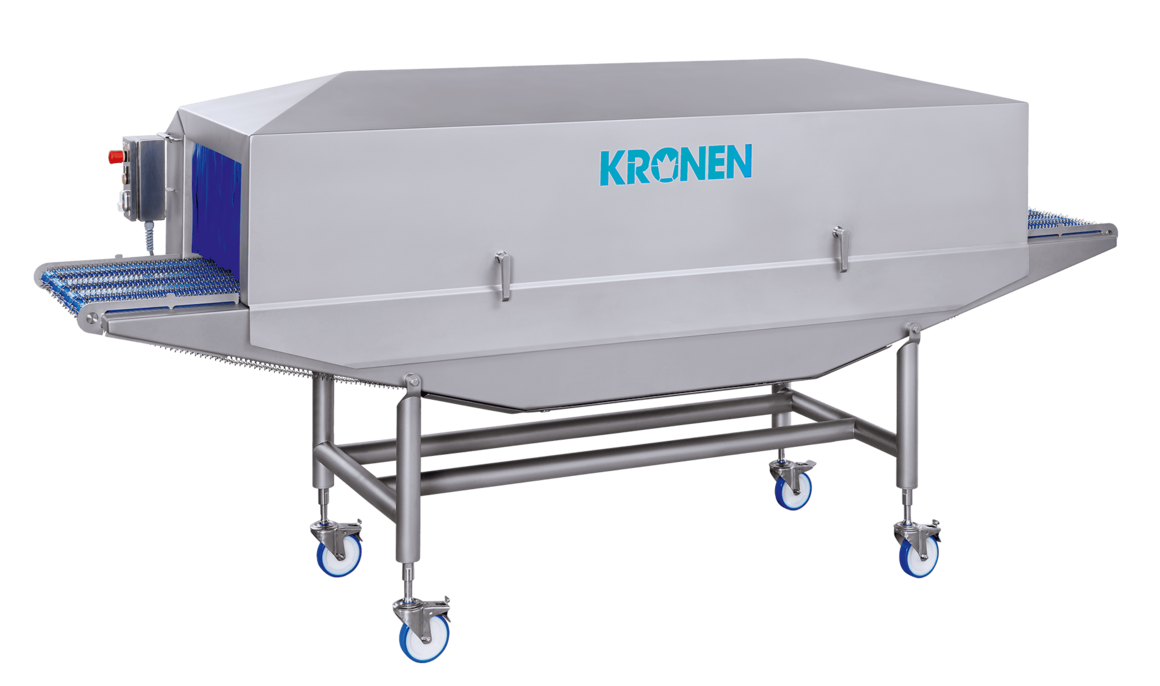

UVC Lock disinfection lock

With UVC surface disinfection, packaging materials, tools and food products are disinfected quickly and reliably – in a dry process without heat exposure or unwanted additives and residues.

Get information/offer
With the UVC Lock disinfection lock from KRONEN, the surfaces of packaging material, tools and food products are disinfected quickly and safely in a dry process, without heat, undesirable additives or residues

Your benefits

  • Cost-efficient, highly effective surface disinfection – in a dry process without heat exposure or chemicals
  • Simple, safe operation guaranteed
  • State-of-the-art UVC technology from KRONEN's partner sterilAir®
  • Individual equipment due to numerous options, for example with hybrid tubes
  • Hygienic design – fast cleaning in the extra cleaning mode
  • For flexible use, also in wet areas and in all usual temperature ranges

Product groups


Portrait


Videos

UVC-LOCK Germ Reduction Lock
The UVC Lock is equipped with the latest UVC technology and ideally suited for surface disinfection of fruit and vegetable products (use with food depends on the legislation in the country of the user) as well as of packaging materials such as boxes, crates and tools etc.
Show more Show less

Benefits

The UVC-Lock disinfection lock from KRONEN has been optimized in terms of safety and simplicity in operation
The UVC-Lock disinfection lock from KRONEN is easy to clean and service thanks to its sophisticated hygienic design
The dry disinfection of surfaces using UVC technology makes the UVC-Lock disinfection lock from KRONEN safe, efficient and versatile

Accessories

The UVC-Lock disinfection lock from KRONEN can also be equipped with low-pressure and hybrid tubes depending on individual requirements – the ideal equipment is calculated for the customer
Close checks on the emitter tubes in the UVC-Lock disinfection lock from KRONEN is possible through integrated monitoring
The belt speed controller can be used to vary the capacity and contact time (i.e. degree of microbial load reduction) in the UVC-Lock disinfection lock from KRONEN
The upper emitter tubes in the UVC-Lock disinfection lock from KRONEN are easy adjustable and thus optimally adaptable to anyproduct
Height adjustment of the upper tubes

If the disinfection lock is used for different products, the optionally available, tool-free height adjustment of the upper emitters is ideal. This enables you to set the minimum distance to the radiation source for each product, thus ensuring the optimal effect.

Show more Show less
The belt of the UVC-Lock disinfection lock from KRONEN can also be reversed and thus transport products back or discharge them
Transport in both directions

If the lock is used between low-care and high-care areas, products can be discharged from the high-care area again with the optional right-left run. The UVC Lock is then used as a conveyor belt.

Show more Show less
Dry disinfection

The capacity depends on factors such as the product.

Electrical power Power depending on the design (tube type and quantity)
Voltage 230 V N/PE
Frequency 50 Hz
Dimensions LxWxH 3044 x 960 x 1286 mm
Weight 490 kg
Infeed/placement height 750 mm
Outfeed/delivery height 750 mm
Miscellaneous Product size max. 550 x 300 mm (width x height), length unlimited
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
