A precise, automated batch weighing system for salad mixtures and vegetable mixtures – for continuous line processing
The automated Batch Weighing System from the KRONEN partner iWEIGH allows products containing cut vegetables, salad leaves, baby leaf lettuce and leafy vegetables to be mixed in batches according to a recipe before being conveyed to the next processing or packaging line.
The batches are continuously fed into the line to optimize its efficiency and prevent overfilling. The system weighs salad and vegetable mixtures up to an accuracy of 200 g.

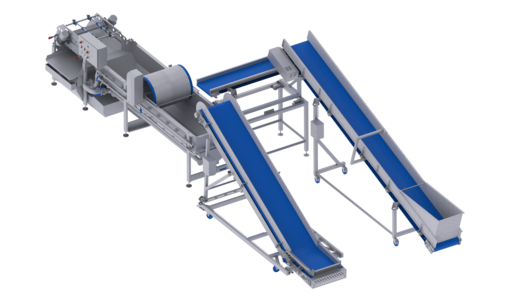

The weighing system comprises a recipe weighing conveyor and an inclined conveyor batch to flow, which feeds the product into the line.
A simple and user-friendly process
To use the recipe weighing system, the operator fills the weighing conveyor, which performs a dosing scale function, with the ingredients according to the clear instructions displayed on the touch panel. The recipe weighing belt is equipped with a tapping frame to ensure that crates of raw materials are fully emptied. Once the desired weight of the first ingredient has been added to the belt, the operator can confirm this using the foot bar, and the system then automatically moves on to the next ingredient. This process continues until the batch is complete.
The salad blend or vegetable blend is then automatically discharged onto the next belt so that the batch is distributed along the entire length of the belt. Once the discharge process is complete, the inclined conveyor batch to flow slows down in order to convey the batch into the system in a continuous flow, leaving the recipe weighing conveyor ready to receive the next batch.
A wide variety of flexible applications
The Batch Weighing System enables users to weigh up to 12 product components (cut vegetables, cut salad, baby leaf lettuce and leafy vegetables) according to pre-specified recipes. Up to 50 individual recipe mixtures can be stored using the touch panel, thus always ensuring up-to-date recipes and mixing ratios of a consistently high quality.
The robust system is designed especially for use in automated processing lines and can be optimally integrated into various process flows.
